PowerPlex® 18D System
Multiplex STR System for Use in Database and Paternity Testing
- Direct amplification from FTA® cards
- Amplify in < 1.5 hours
- Co-amplification of D2S1338, D19S433, Penta D, Penta E, Amelogenin and 13 CODIS loci
Catalog Number:
Size

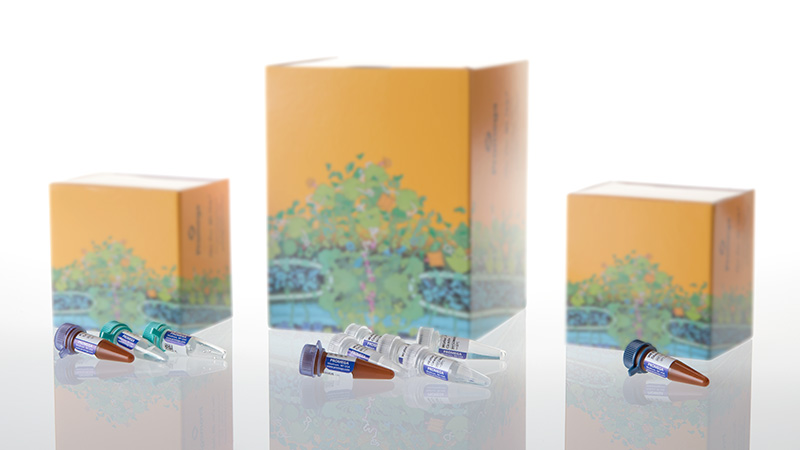

Catalog Number: DC1802

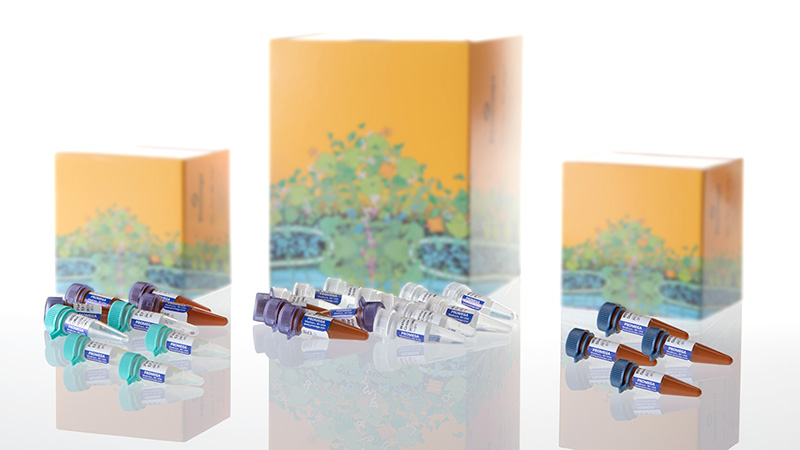

Catalog Number: DC1808
Simplify and Shorten Sample Processing

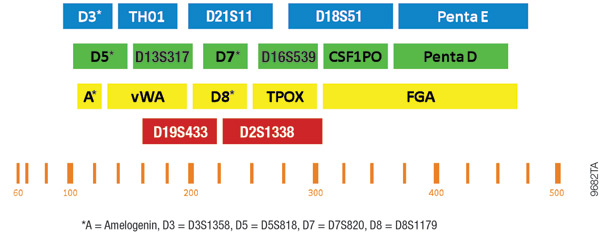

The PowerPlex® 18D System is a multiplex STR system for use in database and paternity testing. This system is optimized for direct amplification of samples on FTA® cards in less than 1.5 hours using rapid cycling technology. This five-color multiplex allows co-amplification of the 13 CODIS loci (D18S51, D21S11, TH01, D3S1358, FGA, TPOX, D8S1179, vWA, CSF1PO, D16S539, D7S820, D13S317, D5S818) plus Amelogenin, Penta E, Penta D, D2S1338 and D19S433. All eighteen loci are amplified simultaneously in a single tube and analyzed in a single injection.
Panels and bins text files are required for automatic assignment of genotypes using the GeneMapper® ID and ID-X software and are available for download. The PowerPlex® 18D System is compatible with Spectrum Compact CE System and Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.
Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.
Rapid Processing Solutions for PowerPlex® Systems
The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.
Which Product is Right for Me?
Take me to the Product SelectorProtocols
Complete Protocol
Kurzprotokoll
Specifications
Catalog Number:
Lieferumfang
| Produkt | Katalognummer | Größe | Konzentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 |
DG500A | 1 × 200μl | View Product | |
|
PowerPlex® 18D Allelic Ladder Mix |
DG181B | 1 × 100μl | ||
|
PowerPlex® 18D 5X Primer Pair Mix |
DK167B | 1 × 1ml | ||
|
PowerPlex® D 5X Master Mix |
DP104A | 1 × 1ml | ||
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product |
SDS
Search for SDSAnalysezertifikat
Nutzungseinschränkung
Not For Medical Diagnostic Use.Lagerhinweise
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
Lieferumfang
| Produkt | Katalognummer | Größe | Konzentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 |
DG500A | 4 × 200μl | View Product | |
|
PowerPlex® 18D Allelic Ladder Mix |
DG181B | 4 × 100μl | ||
|
PowerPlex® 18D 5X Primer Pair Mix |
DK167B | 4 × 1ml | ||
|
PowerPlex® D 5X Master Mix |
DP104A | 4 × 1ml | ||
|
Water, Amplification Grade |
DW099A | 10 × 1,250μl | View Product |
SDS
Search for SDSAnalysezertifikat
Nutzungseinschränkung
Not For Medical Diagnostic Use.Lagerhinweise
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
